FlexMill CC-6

FlexMill CC-6

FlexMill CC-6

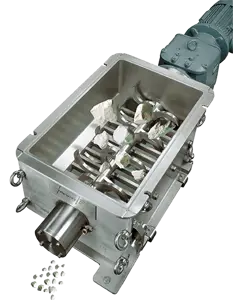

FlexMill Crusher CC-6 is a machine specially designed for crushing products in the pharmaceutical and food industries. The CC-6 allows for the machine to be easily converted from an oscillating mill to a crusher for products with an input size between 3-15 cm, reducing them to pieces of 1-2 cm. An intelligent system integrated in the mill allows the rotor to reverse if the rotor becomes blocked. This function prevents a amperage overload of the system and ensures a continuous process without the machine having to shut down.

Suitable for the following industries :

Industry of type PHARMACEUTICAL

PHARMACEUTICAL

Industry of type BATTERY

BATTERY

Industry of type CHEMICAL

CHEMICAL

Industry of type FOOD

FOOD

Process Characteristics

Particle size range
Particle size range

Down to 1 cm

Throughput
Throughput

Up to 650 kg/h

Product density
Product density

Up to 2 kg/dm³

Temp. range of product
Temp. range of product

From −20 °C to +60 °C

Executions

Standard
Standard
  • ATEX certified for zones 0/20 down to an EMI of> 1mJ
Options
Options
  • WIP

Dimensions & Weight

Dimensions & Weight
Dimensions & Weight
Length 1343 mm
Width 860 mm
Height 1417 mm

Materials

Materials

Exterior

AISI-304 /304L - Ra ≤1.4 μm

Interior

AISI-316 /316L - Ra ≤ 0.8 μm

In product contact, certified by FDA

EPDM/PTFE/Silicone

Features and information

• Broad spectrum of applications for dry, moist, hard, cryogenized or heat-sensitive powder
• Extreme production flexibility due to a unique modular concept allowing very quick tool interchange
• Clear GMP-capable concept for smooth, reproducible production
• High production safety offering the ATEX certified concept for zones 0/20 down to an EMI of> 1mJ
• Reduced operational costs due to the unique oscillating and crushing modular concept
• Simple and fast to clean; Washing-in-Place (WIP) available as option
• Reduced energy consumption
• Versatile use made possible by a large selection of tooling elements
