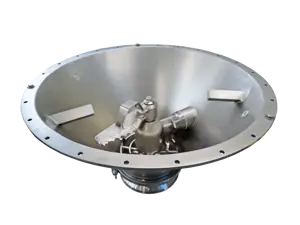

PowerMill PFC-900
Crusher unit
PowerMill PFC-1200
PowerMill PFC-1200
Over the years, Frewitt has proven itself the market leader in the field of powder milling machines. In its factories, constantly developing and producing the highest quality mills.
Frewitt is your ideal partner for bulk solid size reduction solutions. Our broad spectrum of competencies will cover all your needs. In a single step, the PowerMill PFC-1200 crushes bulk solids hardened into blocks or agglomerated lumps as large as 80cm, reducing them to 1-2cm.
Modular construction ensures adaptability, usable as a stand-alone unit for batch production, or integrated into a continuous operation. The PowerMill PFC-1200 sets new standards in crushing when it comes to combining modularity, user and maintenance friendliness.
Suitable for the following industries :
PHARMACEUTICAL
BATTERY
CHEMICAL
FOOD
Process Characteristics
Particle size range
1 - 2 cm
Throughput
Up to 20000 kg/h
Product density
Up to 2 kg/dm
Temp. range of product
-20°C to +60°C
Executions
Standard
- GMP
- Sealed process
- Speed control
- High throughput
- Integrated bridge-breaker
Options
- Bearing temperature measure
- Specific custom tooling
- ATEX
- WIP
Dimensions & Weight
| Length | 2300 mm |
| Width | 1700 mm |
| Height | 2800 mm |
| Weight | 1800 kg |
Materials
Exterior
AISI 304/304L - Ra ≤ 1.4 μm
Interior
AISI 316/316L - Ra ≤ 0.8 μm
In product contact, certified by FDA
EPDM/PTFE/Silicone
Features and information
•
Unique solution on the market with crushing zone covering the entire discharge surface
•
Very broad spectrum of applications ranging from all types of dry to wet and sensitive products
•
Compact assembly for easy in-line integration
•
Optimum production flexibility due to the modular design
•
Possibility to crush with a high throughput
•
Simplified disassembly, assembly and easy access for maintenance or cleaning Washing-in-Place (WIP) available as option
•
Inlet funnel for blocks up to a size of 80 x 30 x 20 cm (for larger blocks on request)
•
Integrated system to avoid product bridging
•
High-tech process bearing
•
High production safety guaranteed by the independently certified design (ATEX optionally available)
