ProFi-Liner

ProFi-Liner
Watch The Video

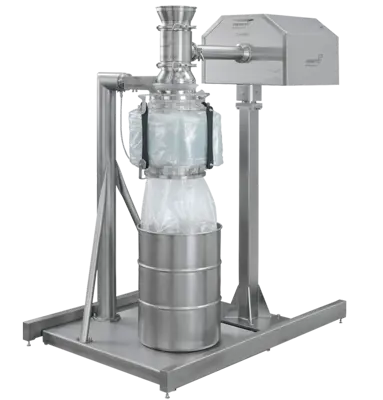

ProFi-Liner

The tubular film filling head ProFi-Liner is a compact, modular filling system that guarantees hermetically sealed working conditions up to OEB level 5.
It can be easily integrated into Frewitt machines or existing process systems, thanks to its compact design. Tubular films of any kind may be attached in a simple and fast manner thanks to retaining rings either attached or axially folded. At the upper end of the tubular film, there is a special clamp and O ring seal; on the lower end a dynamic inflatable seal is provided.

Suitable for the following industries :

Industry of type PHARMACEUTICAL

PHARMACEUTICAL

Industry of type BATTERY

BATTERY

Industry of type CHEMICAL

CHEMICAL

Industry of type FOOD

FOOD

Process Characteristics

Seal Level
Seal Level

Up to 10 mbar

Level of confinement
Level of confinement

Up to OEB 5

ATEX
ATEX

Zone 0/20

Filling Tube Diameter
Filling Tube Diameter

DN300 & 400 as per ISO 2852

Executions

Standard
Standard
  • Easy and rapid cleaning
Options
Options
  • WIP and CIP options available

Dimensions & Weight

Dimensions & Weight
Dimensions & Weight
Length 628 mm
Width 666 mm
Height 670 mm

Materials

Materials

Exterior

AISI-304 /304L - Ra ≤1.4 μm

Interior

AISI-316 /316L - Ra ≤ 0.8 μm

In product contact, certified by FDA

EPDM/PTFE/Silicone

Features and information

• Dust-free filling and emptying of containers

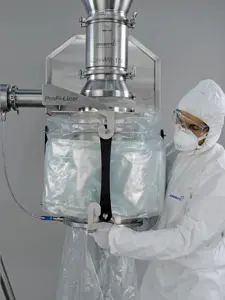

Profilinerfrewitt Milling Machine Tubular Film Filling Compact Modular Filling System OEB 5 Cartidge Change
• High production safety; certified ATEX construction for zone 0/20, MIE range of up to 1mJ as option

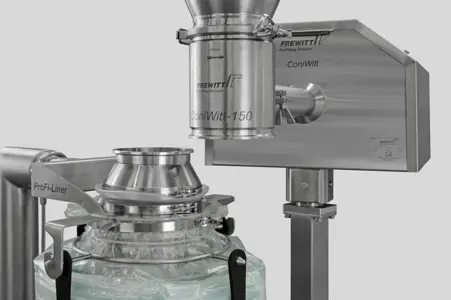

Profilinerfrewitt Milling Machine Tubular Film Filling Compact Modular Filling System OEB 5 Integrated Conical Milling Machine
• Gathered or axially pre-folded tubular films from any manufacturer can be used
