ProFi-OEB
ProFi-OEB

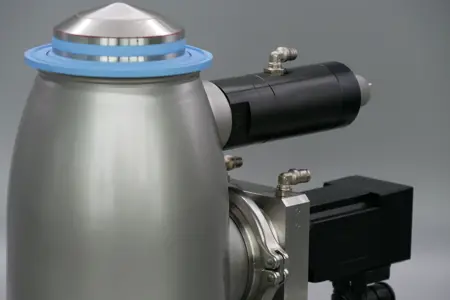

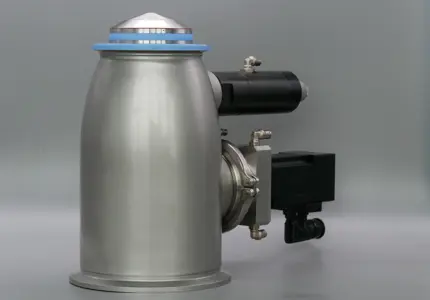

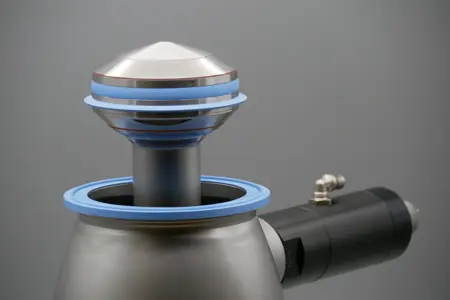

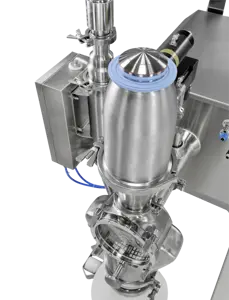

Frewitt has developed, in conjunction with its partner Visval AG, an innovative, patented system that allows the handling and milling of pharma product under an OEB 5 high containment. The system offers simplicity of use, while providing high containment performance and accurate dosing during the milling operation.
Suitable for the following industries :
![Industry of type PHARMACEUTICAL](/media/vm3dv1e2/pharma.png?height=150&format=webp&v=1da7af0f11e1070)
PHARMACEUTICAL
![Industry of type BATTERY](/media/1aqp0pjh/battery.png?height=150&format=webp&v=1da7af0f0efad70)
BATTERY
![Industry of type CHEMICAL](/media/vd1nj01e/chemical.png?height=150&format=webp&v=1da7af0f107a240)
CHEMICAL
![Industry of type FOOD](/media/t54oz3tu/food.png?height=150&format=webp&v=1da7af0f1336d30)
FOOD
Process Characteristics
![Charge bags / containers](/media/vcghtp3u/sie-red-range_white.png?height=100&format=webp&v=1d9df47cb151990)
Charge bags / containers
Up to 1000 kg
![Validated for OEB 5](/media/boxlkj2s/oebtriangle_white.png?height=100&format=webp&v=1d9db5ba1ce50a0)
Validated for OEB 5
<1µg/m3
![Connection flange Tri-clamp](/media/v5zfojb1/installation.png?height=100&format=webp&v=1d9da8cc6b704e0)
Connection flange Tri-clamp
DN 150 / ISO 2852
![ATEX](/media/fwdam0yf/atex_white.png?height=100&format=webp&v=1d9da8cc12033d0)
ATEX
Option available
Executions
![Standard](/media/gw3n1pmo/executions_standard_white.png?height=100&format=webp&v=1d9db204cbe0be0)
Standard
- GMP construction
- Suitable for applications requiring high containment OEB 5*
![Options](/media/qzbdxtjo/executions_optional_white.png?height=100&format=webp&v=1d9db204abff1f0)
Options
- Washing In Place (WIP) and Cleaning In Place (CIP) options available
- ATEX option available
Materials
![Materials](/media/dvkinbym/materials_white.png?height=100&format=webp&v=1d9db229a9fb870)
Exterior
AISI-304 /304L - Ra ≤1.4 μm
Interior
AISI-316 /316L - Ra ≤ 0.8 μm
In product contact, certified by FDA
EPDM/PTFE/Silicone
