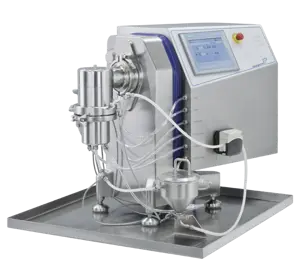

FlexMill-Lab NW-50

FlexMill-Lab NW-50

FlexMill-Lab NW-50

The FlexMill-Lab NW with milling tool type 50, is a high-performance bead mill engineered specifically for wet nano milling of pharmaceutical products down to D50 of 50 nanometer. The modularity of the milling chamber lends itself for processing batches ranging from milligrams of solids up to 1.5 kg. Short milling time at lower specific energy allows a gentle product processing and a tight particle size distribution. The device’s compact design facilitates easy integration and quick set-up in any laboratory.

Suitable for the following industries :

Industry of type PHARMACEUTICAL

PHARMACEUTICAL

Industry of type BATTERY

BATTERY

Industry of type CHEMICAL

CHEMICAL

Industry of type FOOD

FOOD

Process Characteristics

Batch size
Batch size

from mg to 1.5 kg of solid product

Temp. range
Temp. range

Precise control of processing temperature

Product density
Product density

D50 down to 50nm

Executions

Standard
Standard
  • Simple HMI interface
  • Vertical separation system
Options
Options
  • Milling tool type 50

Dimensions & Weight

Dimensions & Weight
Dimensions & Weight
Length 826 mm
Width 561 mm
Height 655 mm

Materials

Materials

Exterior

AISI-304 /304L - Ra ≤1.4 μm

Interior

AISI-316 /316L - Ra ≤ 0.8 μm

In product contact, certified by FDA

EPDM/PTFE/Silicone

Features and information

• High efficiency mill operating at low rotor tip speed
• Intensification of comminution process, high mixing and homogeneity
• Dynamic separation system (patented) with no filter and thus no clogging
• Optional in-line & real-time PAT solutions for size measurement
• GMP design combining simplicity of use, efficient beads handling and high product recovery
• Easy cleaning Washing-in-Place (WIP) and quick tool-free access to internal components
• Multiple operation modes (batch, semi-batch for filling/ emptying, external recirculation)
• Simple and easy integration of the milling head into a rigid or flexible isolator
• Very broad scope of application for all types of powders
• Milling head readily interchangeable on a single Tri-Clamp connection flange
• Light, compact milling head
